Spindle Analyzer Systems

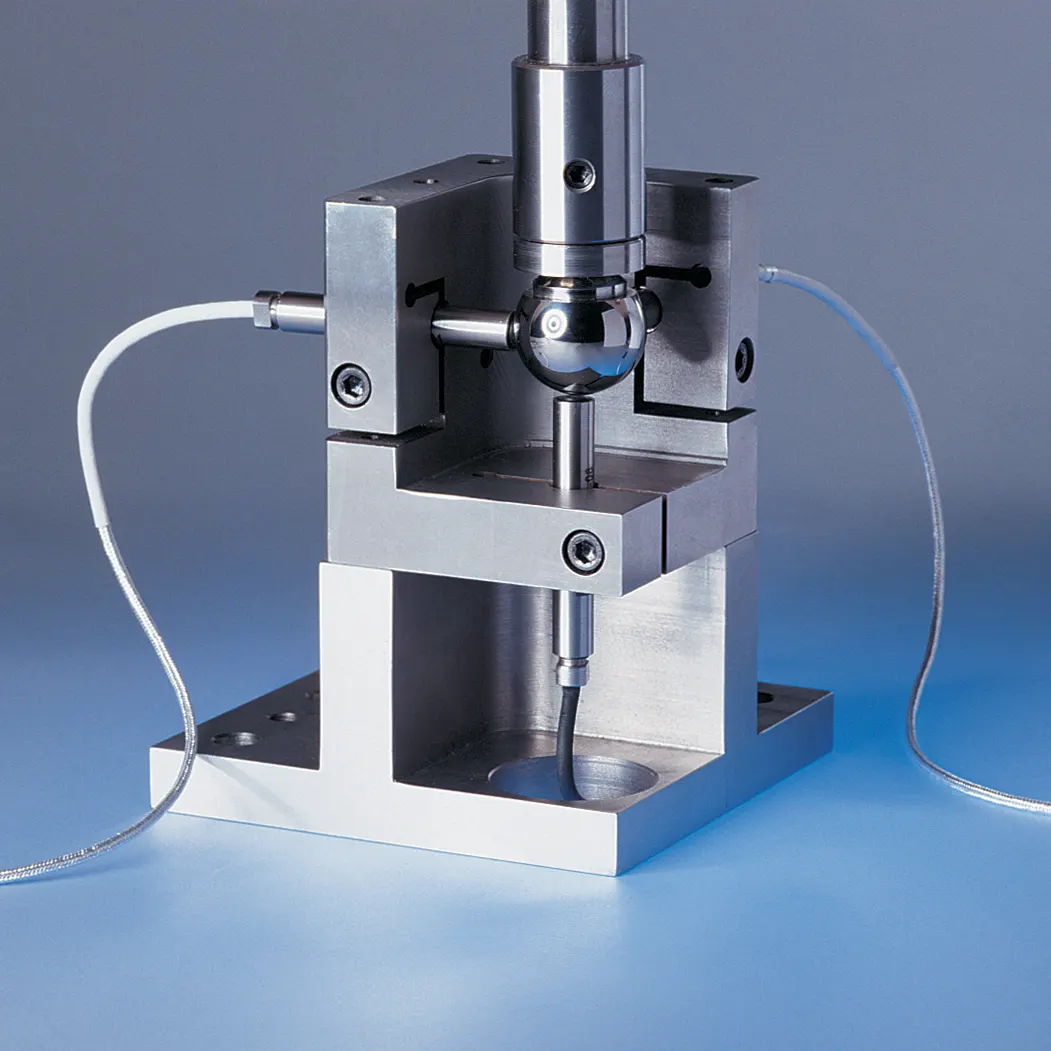

When you need absolute confidence in your spindle performance, our Spindle Analyzer systems are the industry leading solution for in-depth spindle qualification. They deliver high performance non-contact measurement with nanometer resolution for ultra-precision and high-speed spindles.

Spindle Analyzer products

Article

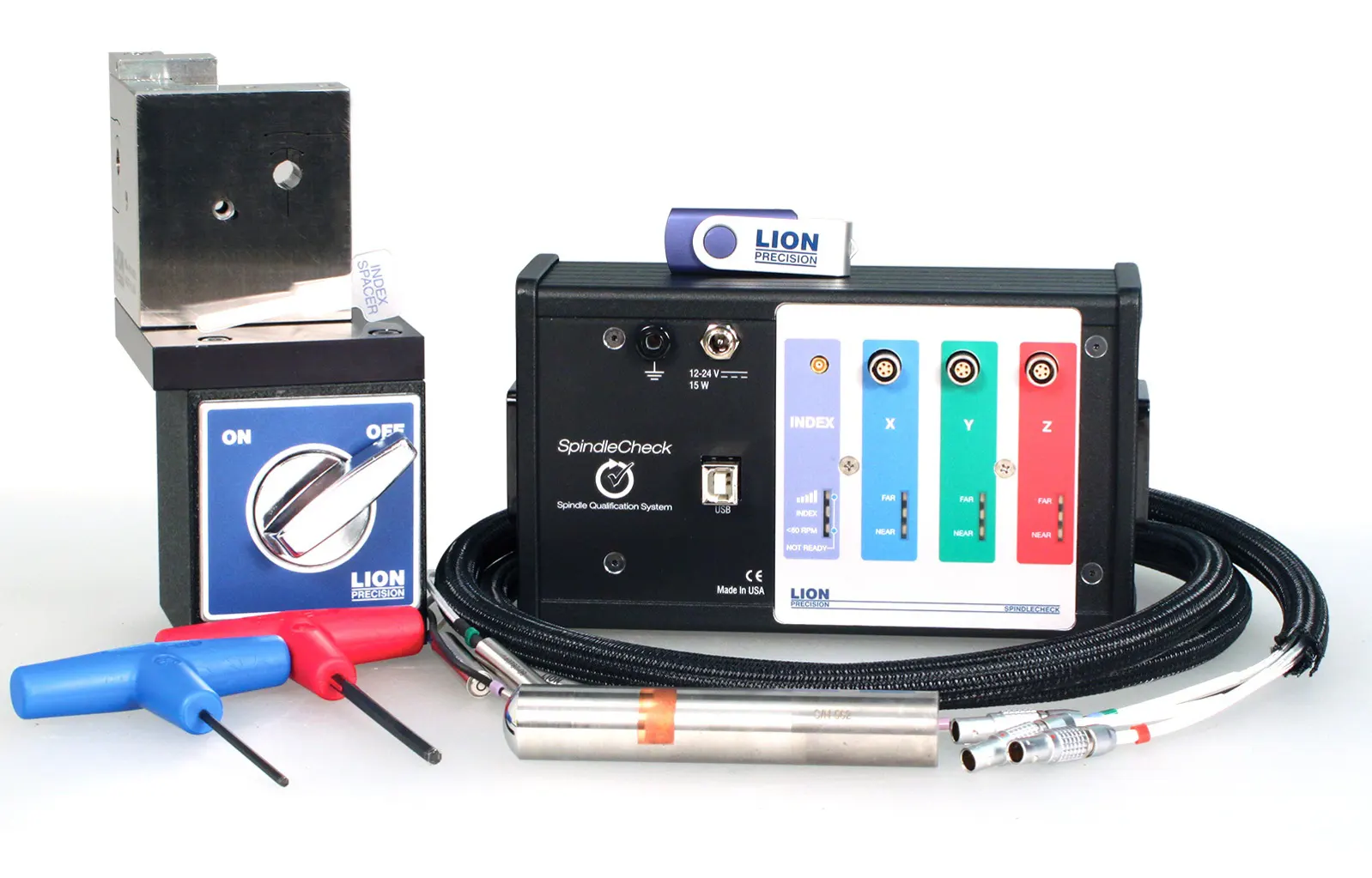

Spindle Check Analyzer

Spindle Check Analyzer is designed for shop floor use where regular and rapid inspection is required.

Read more

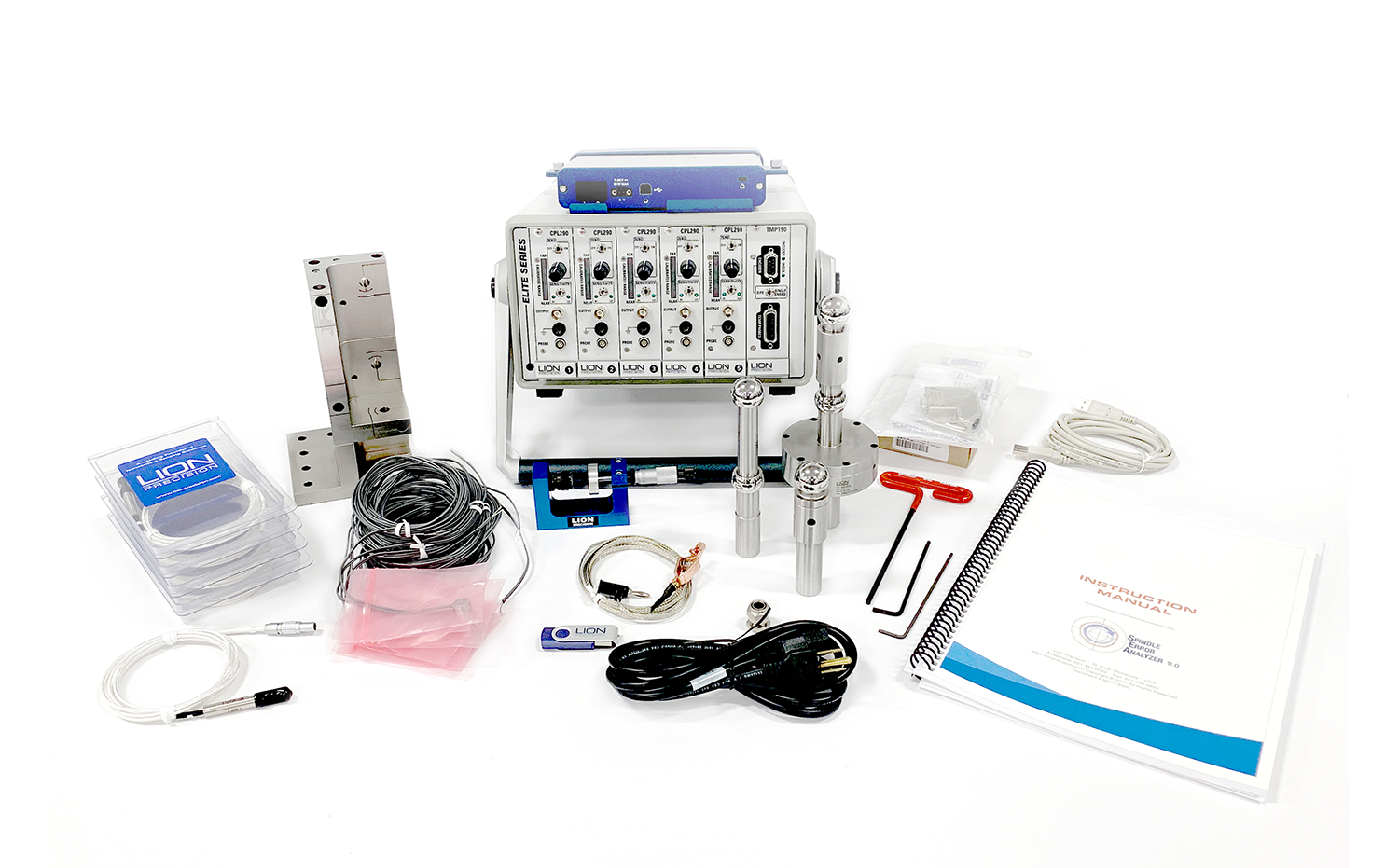

Spindle Error Analyzer

For machine builders or other experts the Spindle Error Analyzer offers additional measurement and analysis options.

Read more

Compare the system features

Measurement capabilities
Number of axes (channels)

Spindle Check Analyzer

3

Spindle Error Analyzer

Up to 5

Temperature sensors

Spindle Check Analyzer

None

Spindle Error Analyzer

7

Samples per revolution

Spindle Check Analyzer

Automatic (speed dependent)

Spindle Error Analyzer

1-5000

Displayed revolutions

Spindle Check Analyzer

32

Spindle Error Analyzer

1-500

Encoder driven sampling option

Spindle Check Analyzer

Spindle Error Analyzer

Highest available resolution

Spindle Check Analyzer

10nm

Spindle Error Analyzer

<1nm

Tests performed
Axial

Spindle Check Analyzer

Spindle Error Analyzer

Radial (Fixed and rotating sensitive)

Spindle Check Analyzer

Spindle Error Analyzer

FFT

Spindle Check Analyzer

Spindle Error Analyzer

Thermal drift

Spindle Check Analyzer

Spindle Error Analyzer

Tilt

Spindle Check Analyzer

Spindle Error Analyzer

Reversal

Spindle Check Analyzer

Spindle Error Analyzer

Shift versus RPM

Spindle Check Analyzer

Spindle Error Analyzer

Portability
Case size

Spindle Check Analyzer

46 x 33 x 18 cm

Spindle Error Analyzer

81 x 61 x 36 cm

Case weight

Spindle Check Analyzer

8 kg

Spindle Error Analyzer

39 kg

An export license may be required for certain countries due to the high resolution.

Spindle Check Analyzer

Spindle Error Analyzer

Spindle Check Analyzer

Spindle Error Analyzer

Measurement capabilities

Number of axes (channels)

3

Up to 5

Temperature sensors

None

7

Samples per revolution

Automatic (speed dependent)

1-5000

Displayed revolutions

32

1-500

Encoder driven sampling option

Highest available resolution

10nm

<1nm

Tests performed

Axial

Radial (Fixed and rotating sensitive)

FFT

Thermal drift

Tilt

Reversal

Shift versus RPM

Portability

Case size

46 x 33 x 18 cm

81 x 61 x 36 cm

Case weight

8 kg

39 kg

An export license may be required for certain countries due to the high resolution.

Other qualification tools to guarantee your machine is within specification:

Position Inspector

Position Inspector

Rapid and automatic verification of your machine linear axes.

View
Position Analyzer

Position Analyzer

In-depth analysis of your machine linear axes.

View
Rotary Inspector

Rotary Inspector

Rapid and automatic verification of the total 5-axis performance of your machine.

View

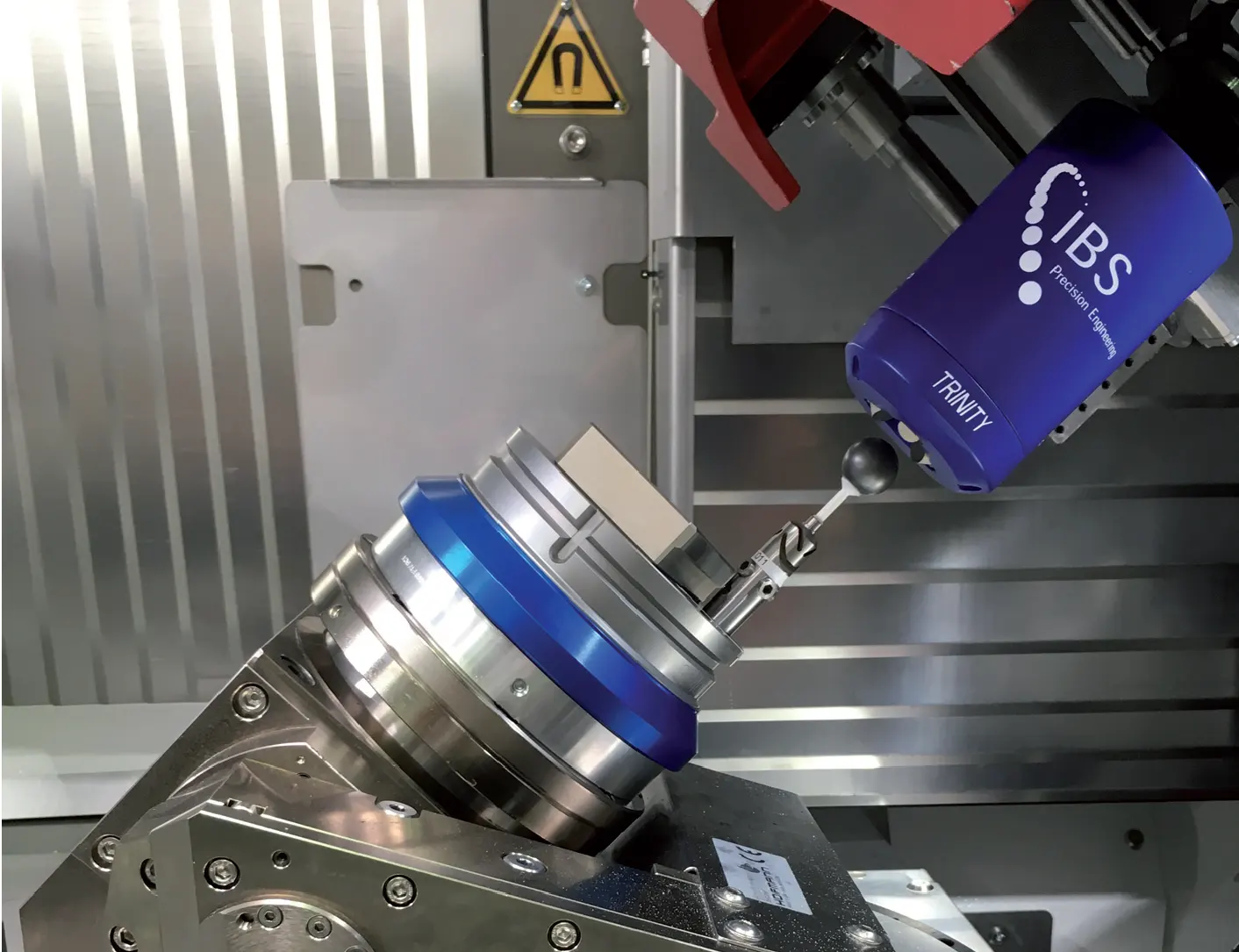

Rotary Analyzer
