Machine Qualification

Machine Qualification workshop May 15th

Elevate your manufacturing process with Siemens and IBS Precision Engineering.

Join us for an exclusive on-site workshop showcasing the power of SINUMERIK and Rotary Inspector to deliver best-in-class machine accuracy.

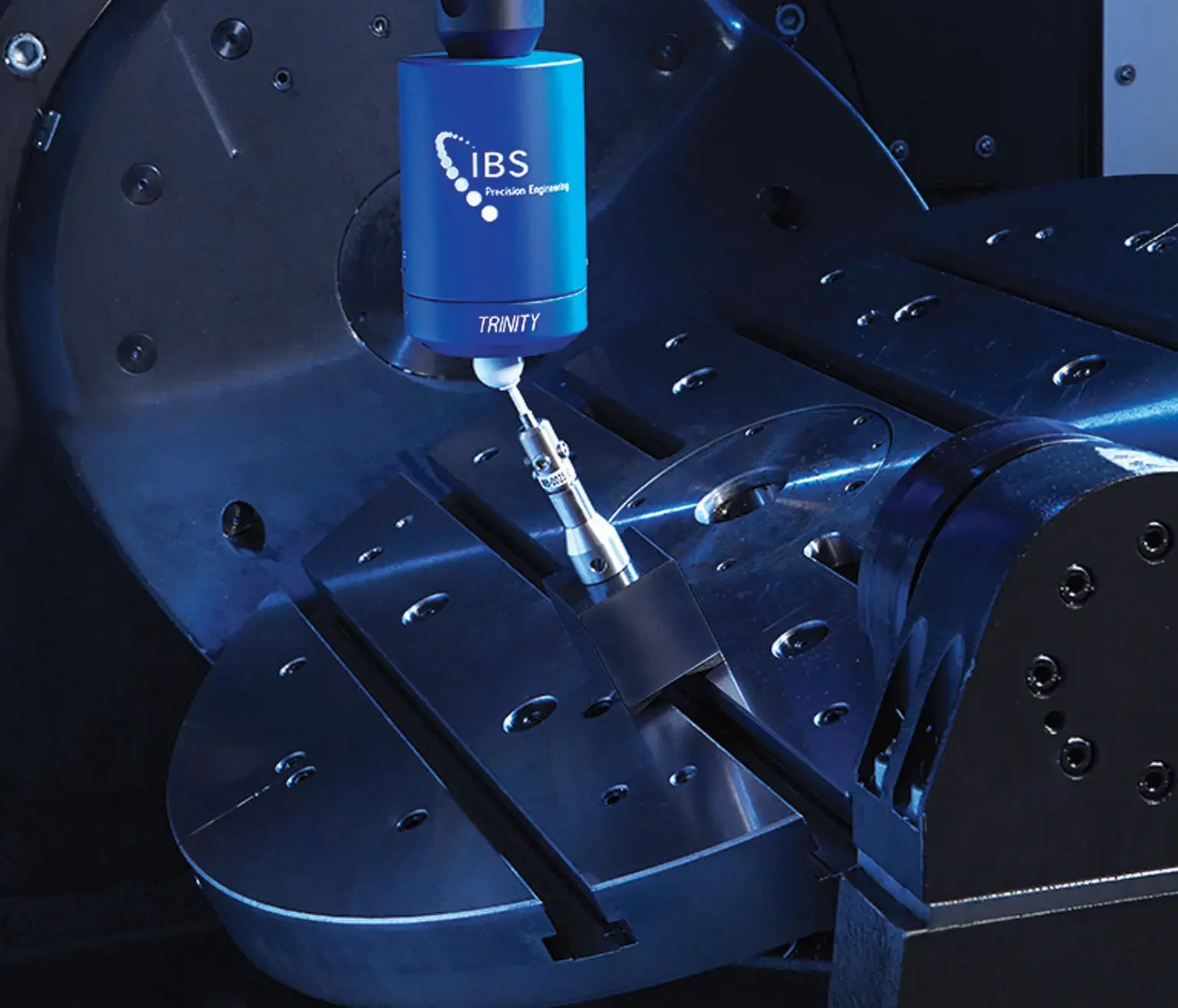

Our Rotary Inspector measurement system provides a revolutionary method to simplify qualifying the performance of 5 and 6-axis machines; enabling rapid assessment and correction of the kinematic performance.

Discover cutting-edge techniques, unlock productivity gains, experience use cases in situ and connect with industry experts. If you are an OEM, system integrator or end-user in the machine tool business, don't miss this opportunity to dive deep into the world of CNC machining accuracy.

Event details:

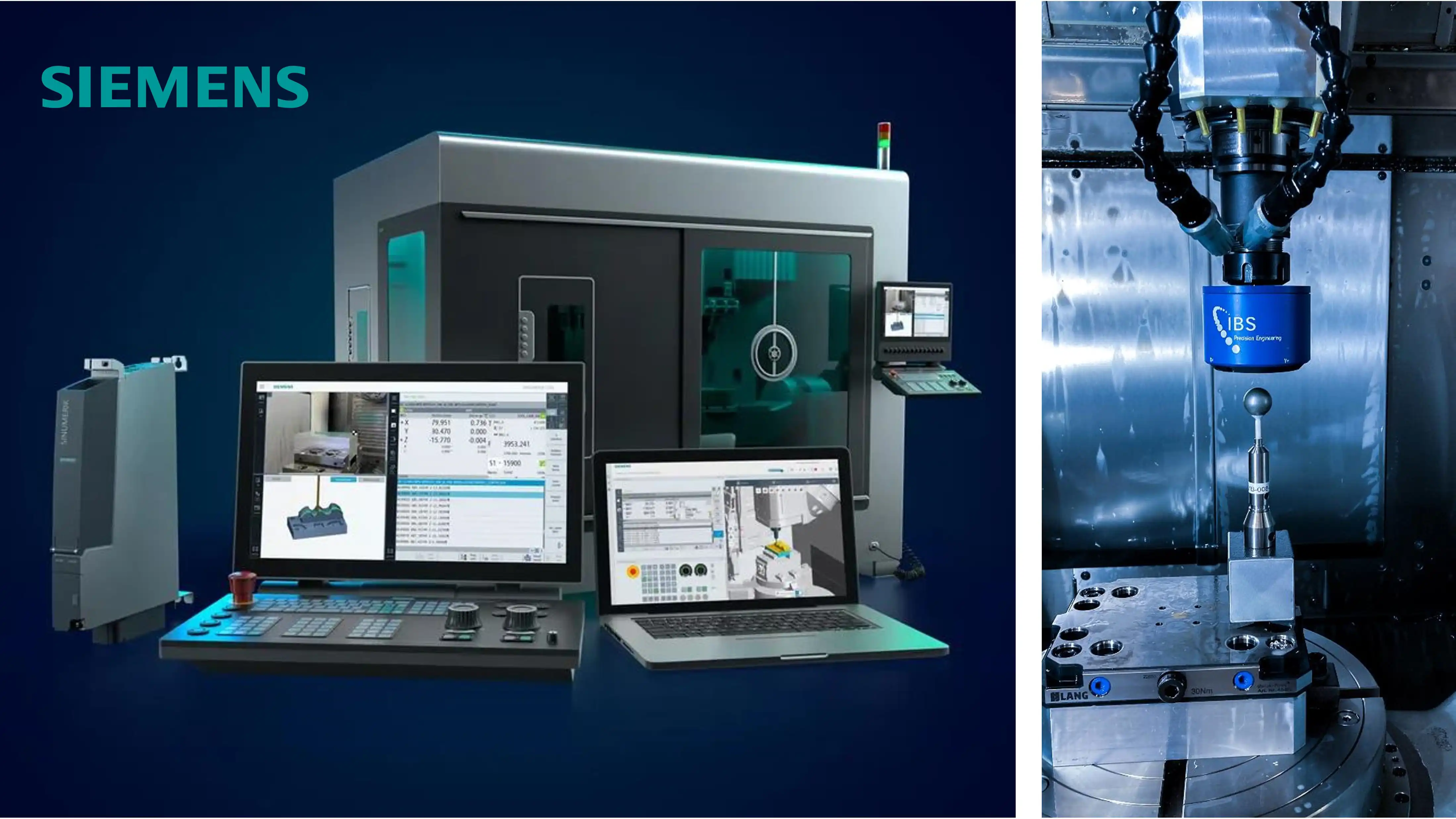

SINUMERIK and IBS Precision: A Partnership Focused on Best-in-Class Machine Accuracy.

Date: May 15th, 2025 (9:00 - 16:30)
Location: Siemens AG - The Impact (Erlangen, Germany)
Workshop Language : English
On-site workshop (not an online event)

Sneak preview of the program:

Presentations from Siemens and IBS
Live use cases of SINUMERIK & Rotary Inspector
Guide Tour through The Impact – DEX of Siemens

Limited seats available, so secure your spot today!

Or contact us directly via inquiry@ibspe.com

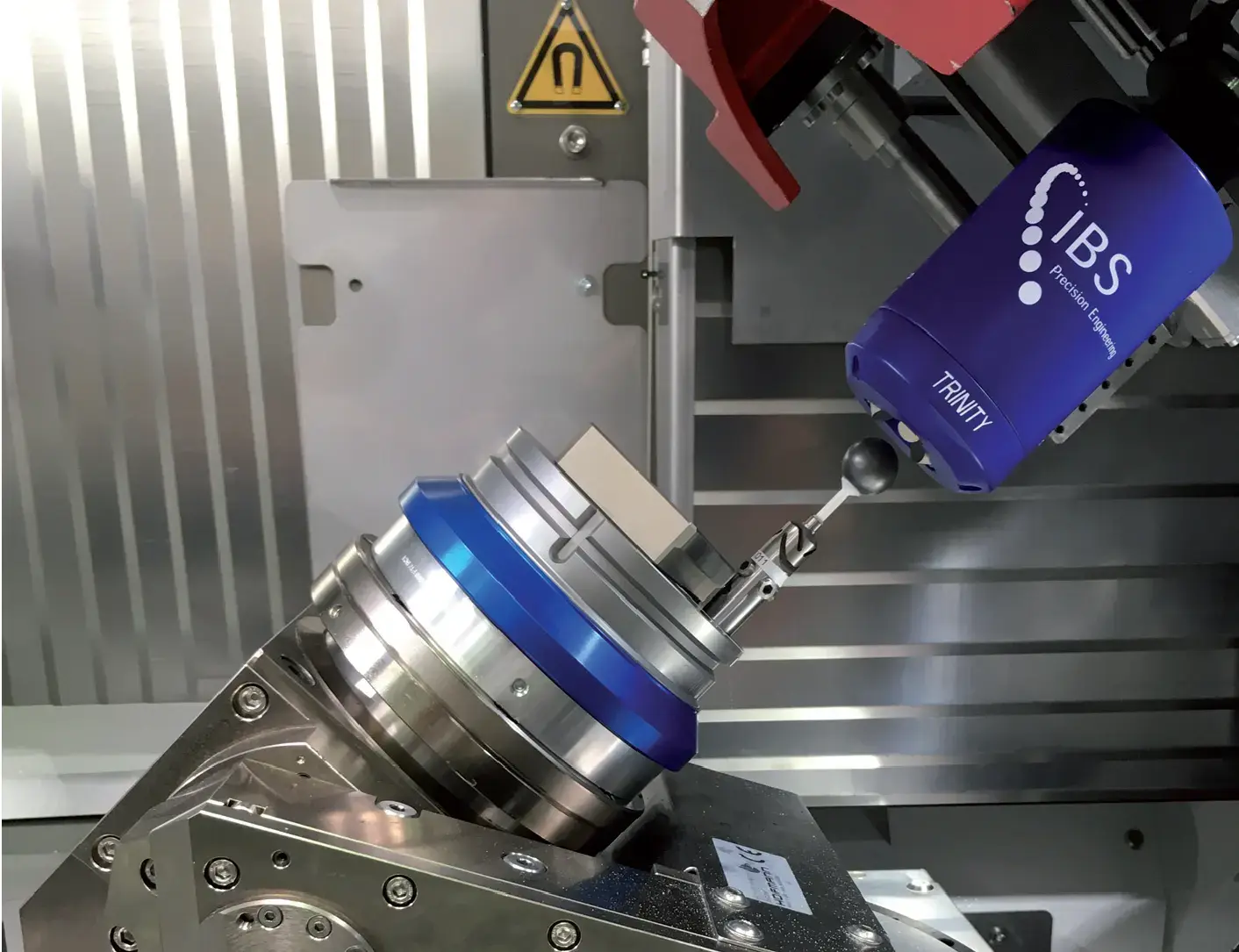

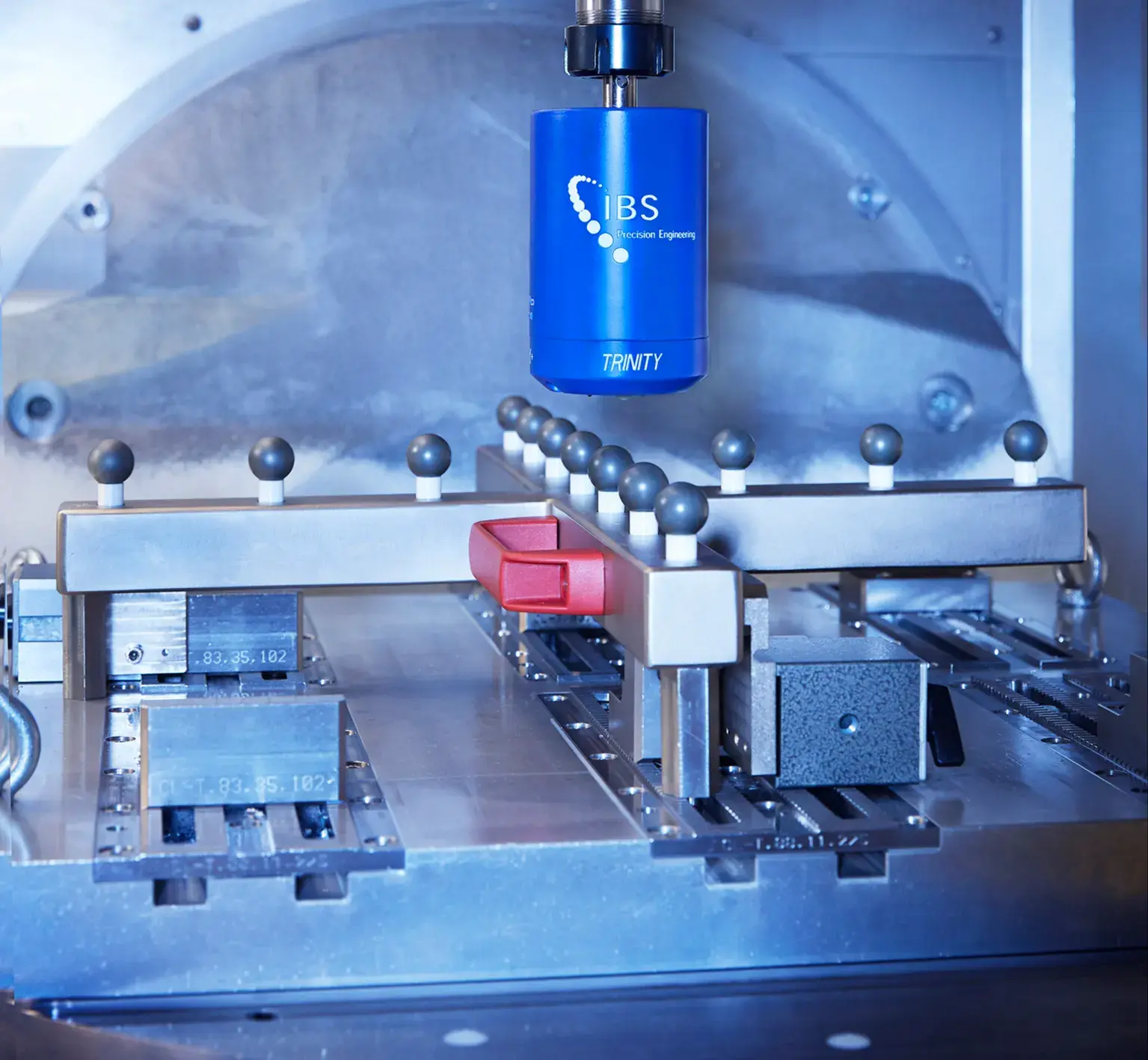

The Trinitym is the perfect wireless tool for analyzing and diagnosing the volumetric and dynamic behavior of 5-axis machine tools with high resolution.

Qualify the volumetric movement of your multi-axis machine in minutes.

Don't waste time with machine qualification methods that are complex to set up and take a lot of time to execute. Our solutions offer micron-level accuracy in just minutes. With options for measuring linear axis, rotary axis, and spindle accuracy, as well as compensation for linear and rotary axes, you can trust our products to provide unparalleled precision and speed. Effortlessly measure, control, and qualify the 3D dynamic movement of your machine, ensuring precise geometric behavior across the XYZ axes in a matter of minutes.

Brochure Machine Qualification

News: RI/RA Software Update

News: Wireless Trinity Probe Comparison

Our machine qualification tools are used for many measurements

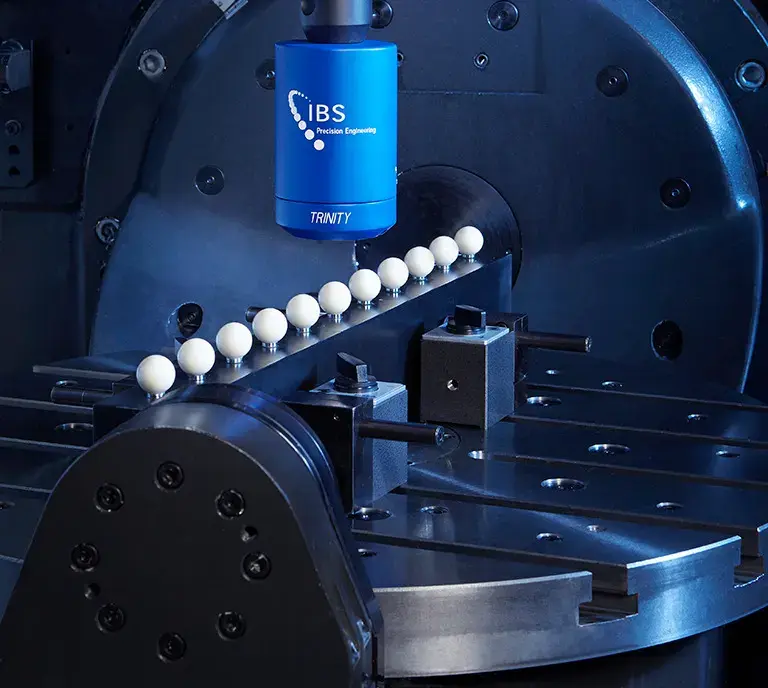

Checking linear displacement

Ensuring that the machine is able to accurately move the workpiece to the correct position.

Verifying angular accuracy

Ensures that the machine is able to accurately rotate the workpiece to the correct position.

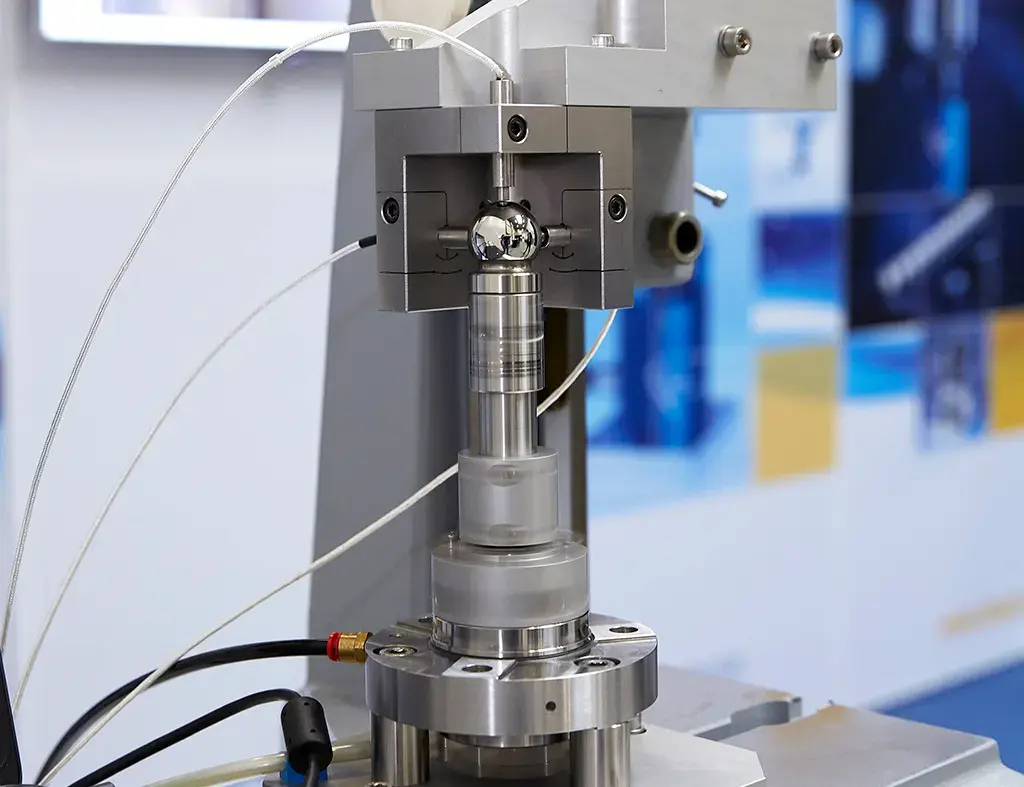

Measuring spindle runout

Used to measure the amount of runout in the spindle, which can affect the accuracy of the finished part.

Calibrating cutting tools

Calibrating cutting tools, such as end mills and drills, to ensure that they are accurately sized and shaped.

Testing machine tool repeatability

Testing the repeatability, by measuring the variation in position or measurement readings over multiple cycles.

Checking machine tool geometry

Verifying the geometry of the machine tool, such as the squareness of the axes.

Aligning machine tool components

Ensuring that all components, such as the headstock and tailstock of a lathe, are parallel to each other and perpendicular to the workpiece.

Diagnosing machine tool problems

Discovering problems, such as excessive vibration, chatter, or tool wear, by identifying any errors or inaccuracies in the machine's calibration.

Optimizing machine tool paths

Providing accurate data on machine tool performance and calibration to optimize tool paths for cutting operations, resulting in improved efficiency.

Maintaining machine tool accuracy over time

Monitoring the accuracy of a machine tool over time, and to schedule regular maintenance or recalibration as needed to ensure continued performance.

Siemens Product Partner

IBS Precision Engineering is proud to be a Siemens Product Partner with regard to their 5-axis machine tool qualification tool, the IBS Rotary Inspector. The Siemens Product Partner programme identifies leading companies with recognized expertise in specific fields complementary to Siemens solutions. With the Rotary Inspector, IBS is a product partner to the SINUMERIK product portfolio – where Siemens offers a range of leading CNC controls solutions including premium machine concepts.
